Bubble CPAP

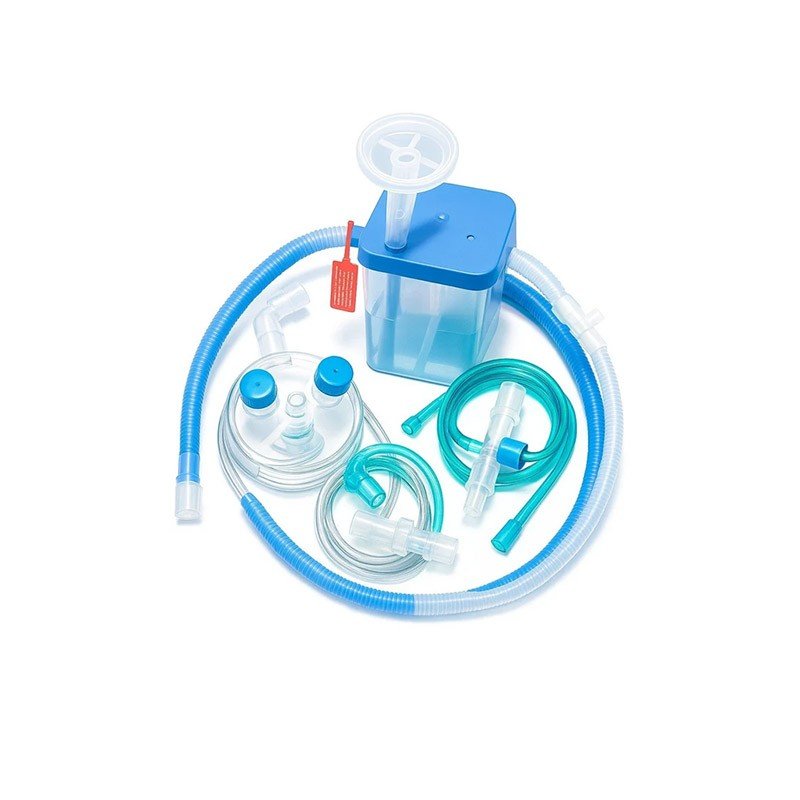

Bubble CPAP is a non-invasive ventilation strategy for newborns with infant respiratory distress syndrome (IRDS). It is one of the methods by which continuous positive airway pressure (CPAP) is delivered to a spontaneously breathing Newborn to maintain lung volumes during expiration. With this method, blended and humidified oxygen is delivered via short bi-nasal prongs or a nasal mask and pressure in the circuit is maintained by immersing the distal end of the expiratory tubing in water. The depth to which the tubing is immersed underwater determines the pressure generated in the airways of the infant. As the gas flows through the system, it “bubbles” out and prevents build up of excess pressures.

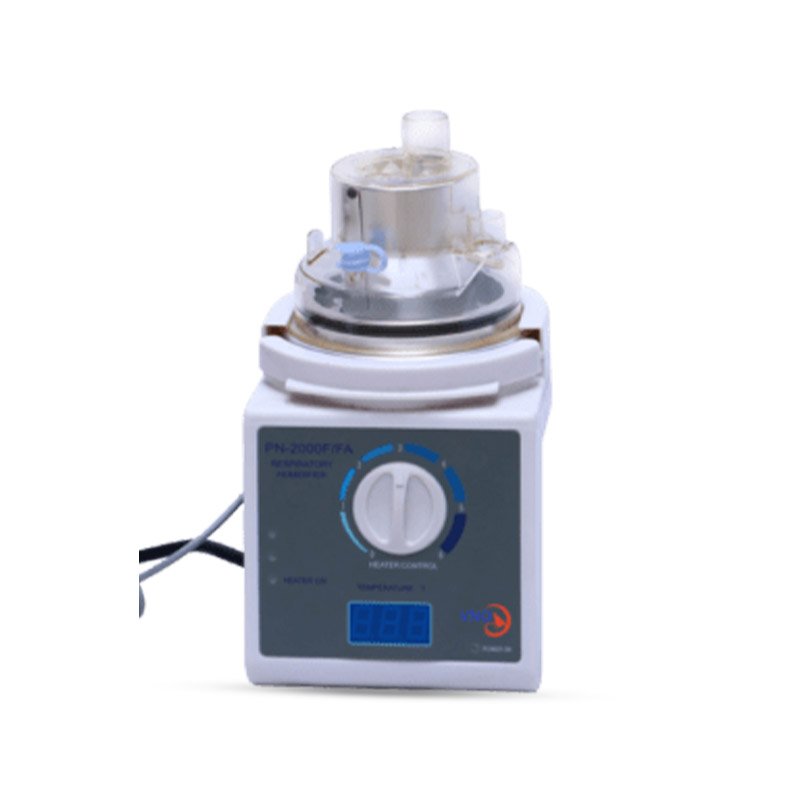

Humidifier

Model	PN-2000FC850
Power Source	AC 220V, 50-60Hz (Optional: AC 110V, 50-60Hz)
Heated Plate	150W
Thermal Cut Off	95±6℃
Display	Three digit, 0.56 inch, 7 segment Led
Temperature Monitoring	0-75℃
Max-temperature of Heated Plate	85℃
Heated Wire	AC 23V 60W, 50-60Hz
Power Rate	220W
Alarm	Yes
Temperature Control Setting	Invasive Mode: Chamber Outlet: 35.5-37℃, Airway 35-40℃,
Temperature Control Setting	Non-invasive Mode: Chamber Outlet: 31℃, Airway 28-34℃,
Range	10-70℃, Accuracy: ±2℃ (In 25-45℃ temperature range)

Air Oxygen blender

Model	AD3000-SPD2 Air Oxygen Blender
FiO2	21%-100%
Flow Control	0.1-1 & 1-10LPM
Pressure	Air/Oxygen@0.3-0.4MPa
Alarm	When gas supply pressure difference > 0.1MPa
Alarm Noise	> 57dB(A)
Number of Output	Dual
Accuracy of FiO2	±3%
Bleed Flow	3LPM

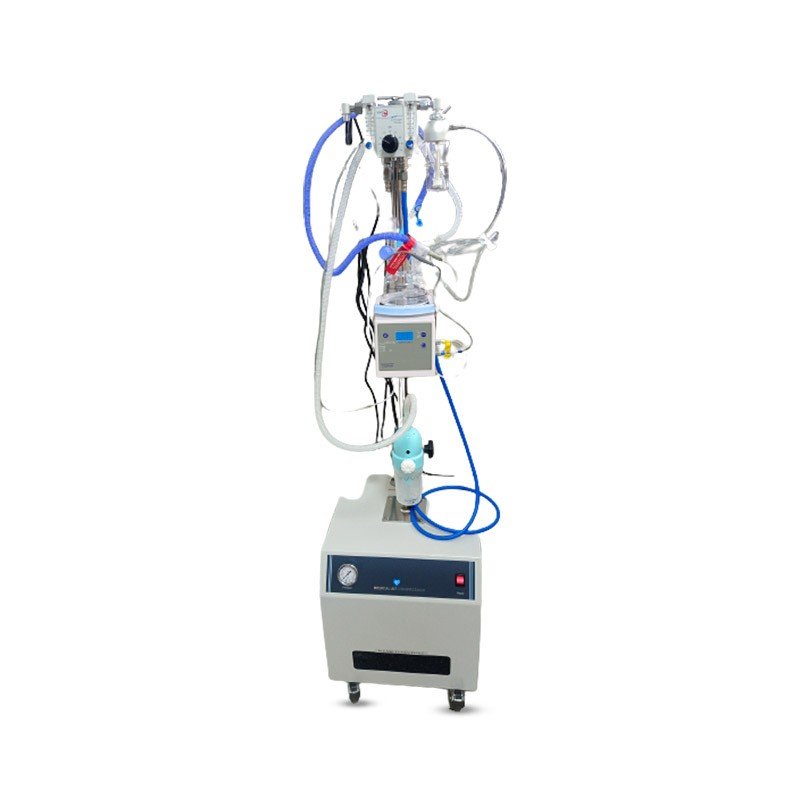

Compressor

Model	VA 11
Nominal voltage and frequency	220 VAC +/- 10% ; 50/60Hz
Compressor efficiency	55 L/min @ 3,5 Bar
Filtration of air	5 µm
Dew point depression at 40 Lit.min-1, 20°C	5°C under the ambient temperature
Outlet connection	DISS 1160-A (3/4″-16 UNF)
Mode of the operation	Continuous
Automatic Back-up to central pipeline	On request
Noise level	≤50 dB [A]
Dimensions (l x b x h)	410 x 447 x 445 mm
Dimensions (l x b x h)- with wheels	410x 447 x 546 mm
Weight	46 kg
